High-Performance Hydraulic Breaker for Demolition and Construction Applications

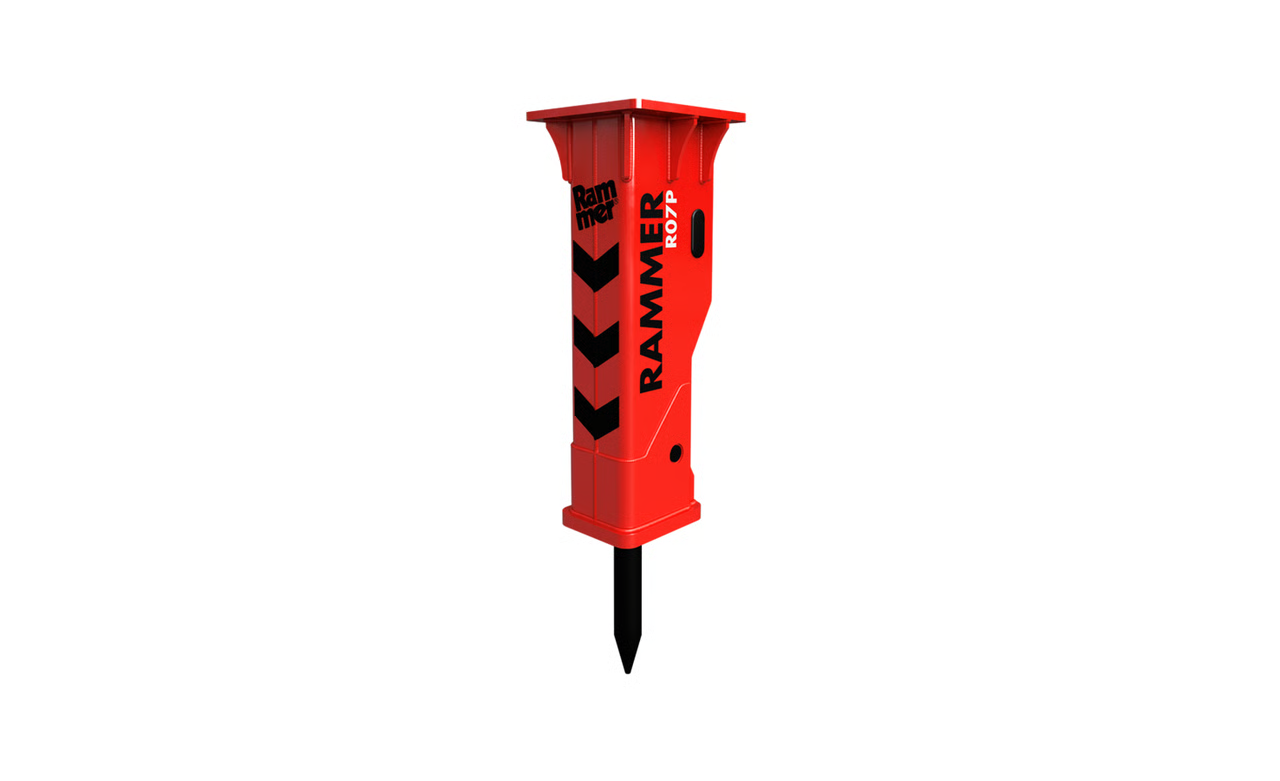

The Rammer R07P hydraulic hammer is designed for compact and mid-sized excavators operating in demanding demolition and construction environments. Suitable for carriers in the 5–9 ton range, the R07P delivers powerful impact energy, high productivity, and reliable hydraulic performance.
With its durable Rammer construction and optimized hydraulic design, the R07P is ideal for trenching, primary and secondary demolition, landscaping, and rental fleet applications.
Applications
Trenching
Perfect for utility trenches, cable installations, and infrastructure projects.
Primary Demolition
Efficient for concrete breaking, renovation work, and light structural demolition.
Secondary Demolition
Suitable for reinforced concrete, asphalt, and masonry applications.
Landscaping
Ideal for landscaping, surface preparation, and ground improvement projects.
Rental Fleets
Reliable and operator-friendly hydraulic breaker for rental equipment operations.
Technical Specifications
| Specification | Value |
|---|---|
| Model | Rammer R07P |
| Operating Weight | 329 kg |
| Minimum Working Weight, Flange Mounted | 400 kg |
| Tool Diameter | 75 mm |
| Impact Rate | 450 – 950 bpm |
| Operating Pressure | 80 – 140 bar |
| Oil Flow Range | 45 – 90 l/min |
| Pressure Relief Setting | 200 bar |
| Maximum Pressure Relief | 220 bar |
| Maximum Back Pressure | 15 bar |
| Input Power | 21 kW |
| Pressure Line Connection | BSPP Internal 3/4″ |
| Return Line Connection | BSPP Internal 3/4″ |
| Minimum Hose Inner Diameter | 15 mm |
| Return Hose Minimum Inner Diameter | 15 mm |
| Optimum Oil Temperature | 40 – 60°C |
| Allowed Oil Temperature Range | -20°C to 80°C |
| Optimum Oil Viscosity | 30 – 60 |
| Allowed Viscosity Range | 20 – 1,000 |
| Suitable Skid Steer / Robot Weight | 4 – 6 t |
| Suitable Carrier Weight | 5 – 9 t |
| Measured Noise Level | 117 dB |
| Guaranteed Noise Level | 121 dB |
Compatible Machines
Caterpillar Excavators
Kubota Excavators
Bobcat Compact Excavators
Takeuchi Excavators
JCB Excavators
Yanmar Compact Excavators
Why Choose Rammer
Rammer hydraulic hammers are trusted worldwide for their durability, high breaking efficiency, and long service life. The Small Range series is specifically engineered for professional operators who require reliable performance and low operating costs in demanding job site conditions.
Contact MAQ ATTACH
For pricing, availability, and professional consultation regarding the Rammer R07P hydraulic hammer, please contact our team.
