Concrete Mixer Bucket S45 Capacity 450 Ltr.

Concrete Mixer Bucket S45 Capacity 450 Ltr.

• Hardox 500TUF wear-resistant steel propellers thickness 15mm on model S40 / S45 and S50;
• Central solid pin in full C45 steel shaft with 75mm diameter om S40 / S45 and S50;
• Danfoss hydraulic motor, with chain drive movement, starting from our model S45 onwards;
• Wear-resistant steel blade;
• Spherical roller bearings;
• Central drain with hydraulic opening and protected rod cylinder;
• Bosch Rexroth distributor for opening the drain ( bottom discharge );
• Fixed hot-galvanized protection grid with bag breaker;
• Hydraulic pipe with explosion-proof sheath;
• Kit for electrical connection to the machine.
• Rubber exhaust pipe with special guide rod;
• CE certification and use and maintenance manual.
• 12 months warranty

OPTIONS:

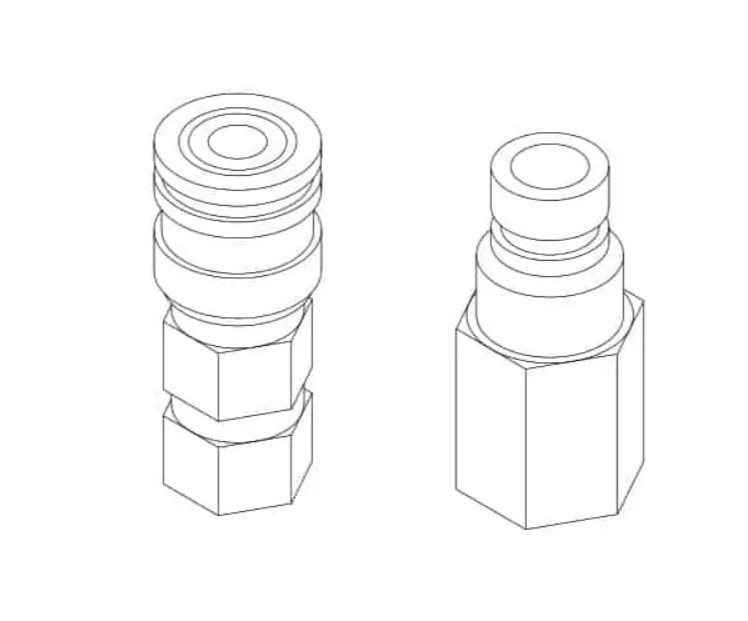

• Optional Quick Couplings ( ½” inch flat face) for the hoses + 120.00 €  (needed 2 pc = 240.00 € NET)

ADDITIONAL HARDOX 500 TUF BUCKET INNER LAYER :

( if needed, further +4mm reinforcement layer for the S25 mixing bucket ) : + 460,- € NET, on the above-mentioned sales price ( in this case you must be considered some little, longer lead time ).

( if needed, further +4mm reinforcement layer for the S30 mixing bucket ) : + 475,- € NET, on the above-mentioned sales price ( in this case you must be considered some little, longer lead time ).

( if needed, further +4mm reinforcement layer for the S35 mixing bucket ) : + 500,- € NET, on the above-mentioned sales price ( in this case you must be considered some little, longer lead time ).

( if needed, further +4mm reinforcement layer for the S40 mixing bucket ) : + 525,- € NET, on the above-mentioned sales price ( in this case you must be considered some little, longer lead time ).

( if needed, further +4mm reinforcement layer for the S45 mixing bucket ) : + 600,- € NET, on the above-mentioned sales price ( in this case you must be considered some little, longer lead time ).

( if needed, further +5mm reinforcement layer for the S50 mixing bucket ) : + 700,- € NET, on the above-mentioned sales price ( in this case you must be considered some little, longer lead time ).

*WHEN CHOOSING A CONCRETE MIXER BUCKET, PLEASE PAY ATTENTION TO THE NOMINAL WORKING CAPACITY OF THE MACHINE TO WHICH YOU WILL MOUNT THE CONCRETE MIXER BUCKET.
TAKING INTO ACCOUNT THE FOLLOWING TOTAL WEIGHT OF THE CONCRETE MIXER BUCKET:
(weight of the mixer bucket when full of concrete at the nominal capacity of the bucket):

• S25 model :     965 kg
• S30 model : 1 105 kg
• S35 model : 1 265 kg
• S40 model : 1 520 kg
• S45 model : 1 710 kg
• S50 model: 1.970 kg

The concrete mixing bucket is the ideal equipment for producing concrete in a practical way and transporting it anywhere.
keeping the mixture in the best conditions and quickly in
It only takes 3 minutes to mix the ingredients perfectly.

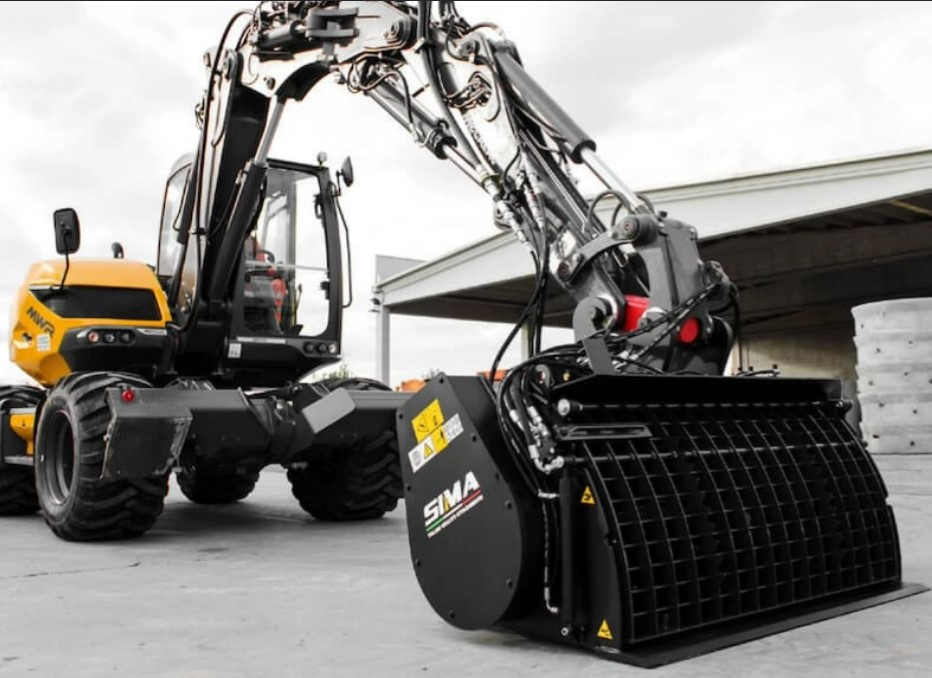

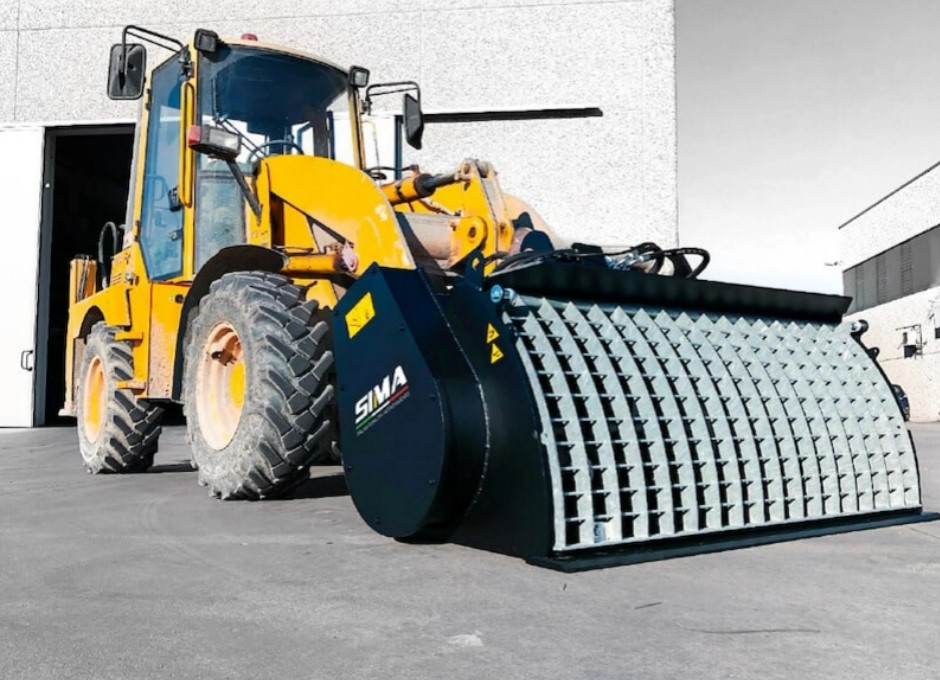

The concrete mixing buckets can be used for any type of construction equipment:
skid steer loader, backhoe loader, front loader, telescopic loader, excavator and front loader tractor.

In the standard version, each model is equipped with a Danfoss hydraulic motor, mixing propellers made of wear-resistant steel
Hardox 500, hot-dip galvanized grid with bag breaker, Bosch Rexroth solenoid valve for opening the drain, hydraulic pipes, electrical connection kit to be applied to the machine and exhaust pipe.

To improve the performance of the concrete mixing bucket and make concrete production more practical, MAQ has introduced various additional features, such as:

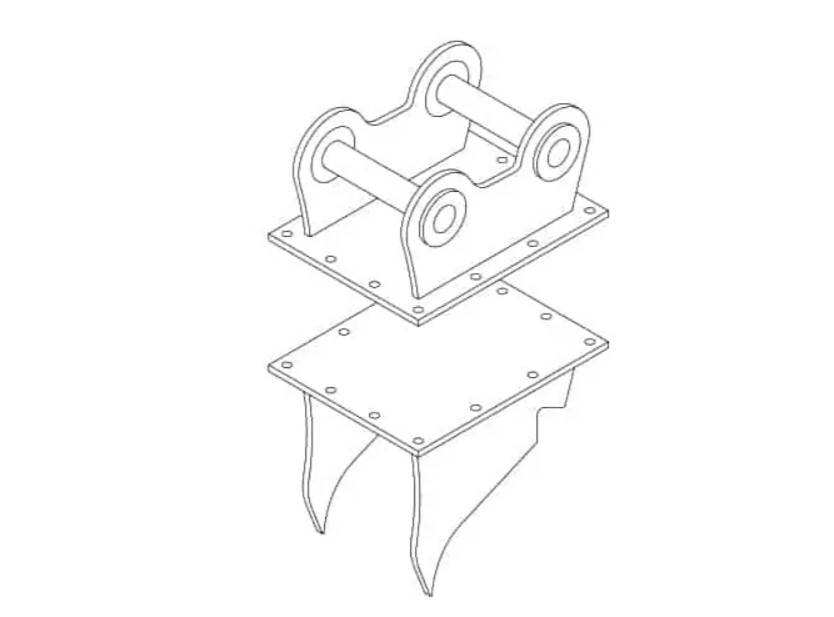

hydraulic or gas spring opening of the grate, double bottom made of wear-resistant Hardox 450 steel, pressure regulating valves, as well as the MAQ System Multifunctional Attachment System to increase the possibilities of use.
In order to offer the best of our products (during use
for harsh working conditions or for special applications), we carry out customizations according to the specific request of the customer.
