Forestry Mulcher TLE 100/22 for JCB, CASE, HANIX, HYUNDAI
KOMATSU Models: WB93R, WB93S, WB97R
Model |
100/22 |
||||
| CODE | 006 0011 00 | ||||
| WEIGHT* | kg | 150 | |||
| EXCAVATOR CAPACITY | t | 5.5-9.5 | |||
| ENGINE DISPLACEMENT | cc | 22 | |||

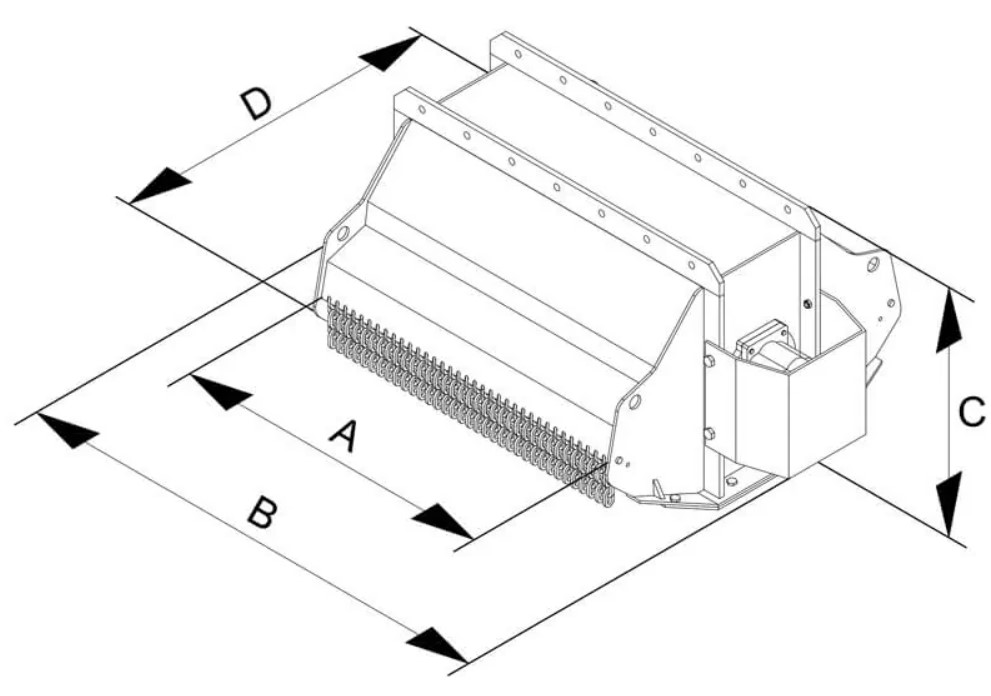

| A-WORKING WIDTH | mm | 1042 | |||
| B-TOTAL WIDTH | mm | 1263 | |||
| C-HEIGHT | mm | 465 | |||
| D-DEPTH | mm | 656 | |||
| TRANSMISSION TYPE | DIRECT | ||||
| No. OF KNIVES | 56 | ||||
| MAX CUTTING DIAMETER | cm | 5-6 cm | |||
| IDEAL OIL CAPACITY | lt | 54 | |||
| MAX PRESSURE | bar | 250 |
-
Pin diameter: 40 mm
-
Dipper Gap: 160 mm
-
Pin center: 295 mm
- Total Widtch: 1260 mm
The TLE Mulcher is made with a very robust structure, designed for heavy-duty use, which guarantees solidity and reliability over time.
This equipment is ideal for the maintenance of green areas, clearing of scrub and small trees of up to 5 cm and cleaning of ditches and channels.
The TLE Mulcher may be applied on excavators of up to 10 tons and it is fitted as standard with interchangeable slides which facilitate sliding on the ground, excavator attachment set-up which is adjustable horizontally, hoses for hydraulic connection, and containment chains positioned on both sides to prevent material from being ejected violently.
Two-way hydraulic motor with gears, complete with antiimpact and anti-cavitation valve, with direct pick-up on the rotor which is which is fitted with Y-shaped knives with intermediate element.
N.B. the excavator attachment is not included in the basic set-up.
