Compact and Powerful Hydraulic Breaker for Demolition and Trenching Applications

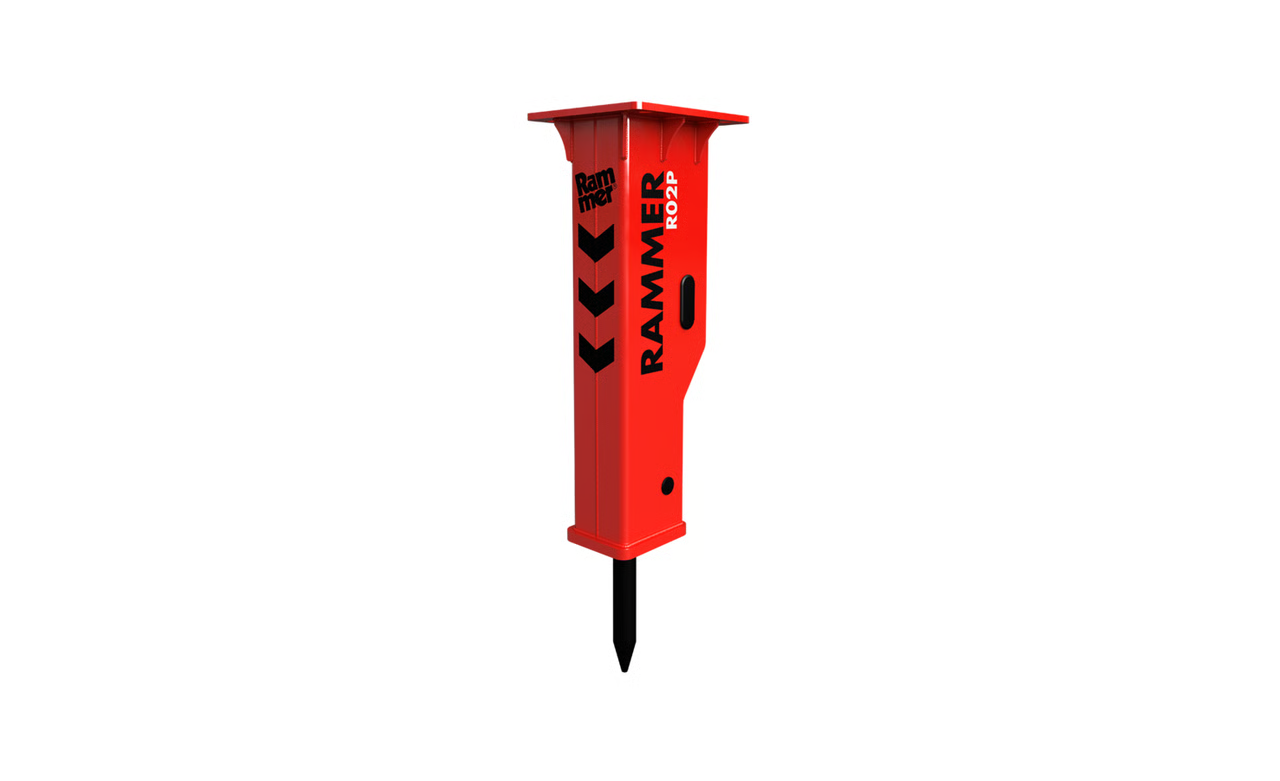

The Rammer R02P hydraulic hammer is engineered for compact carriers and demanding demolition applications. Designed for mini excavators, skid steers, and robotic machines in the 1–3 ton range, the R02P delivers reliable impact performance, low operating costs, and excellent productivity in confined working environments.
With its robust Rammer construction and optimized hydraulic system, the R02P is ideal for trenching, primary and secondary demolition, recycling, landscaping, and rental operations.
Applications
Trenching
Ideal for utility trenches, cable installation, and pipeline projects.
Primary Demolition
Efficient for light structural demolition and concrete breaking.
Secondary Demolition
Perfect for breaking reinforced concrete, asphalt, and masonry.
Recycling
Suitable for recycling facilities and construction waste processing.
Landscaping
Excellent for landscaping, ground preparation, and infrastructure work.
Rental Fleets
Reliable and operator-friendly solution for rental applications.
Technical Specifications
| Specification | Value |
|---|---|
| Model | Rammer R02P |
| Operating Weight | 101 kg |
| Minimum Working Weight, Flange Mounted | 130 kg |
| Tool Diameter | 46 mm |
| Impact Rate | 450 – 1,400 bpm |
| Operating Pressure | 60 – 120 bar |
| Oil Flow Range | 15 – 40 l/min |
| Pressure Relief Setting | 150 bar |
| Maximum Pressure Relief | 170 bar |
| Maximum Back Pressure | 20 bar |
| Input Power | 8 kW |
| Pressure Line Connection | BSPP Internal 1/2″ |
| Return Line Connection | BSPP Internal 1/2″ |
| Minimum Hose Inner Diameter | 12 mm |
| Optimum Oil Temperature | 40 – 60°C |
| Allowed Oil Temperature Range | -20°C to 80°C |
| Optimum Oil Viscosity | 30 – 60 |
| Allowed Viscosity Range | 20 – 1,000 |
| Suitable Skid Steer / Robot Weight | 1 – 2 t |
| Suitable Carrier Weight | 1 – 3 t |
| Measured Noise Level | 114 dB |
| Guaranteed Noise Level | 118 dB |
Compatible Machines
Caterpillar Mini Excavators
Kubota Mini Excavators
Bobcat Mini Excavators
Takeuchi Mini Excavators
JCB Mini Excavators
Yanmar Mini Excavators
Why Choose Rammer
Rammer hydraulic hammers are trusted worldwide for their durability, efficiency, and consistent breaking performance. The Small Range series is developed specifically for compact carriers operating in demanding environments where reliability and precision matter most.
Contact MAQ ATTACH
For pricing, availability, and professional consultation regarding the Rammer R02P hydraulic hammer, please contact our team.
