Compact Hydraulic Breaker for Precision Work and Reliable Performance

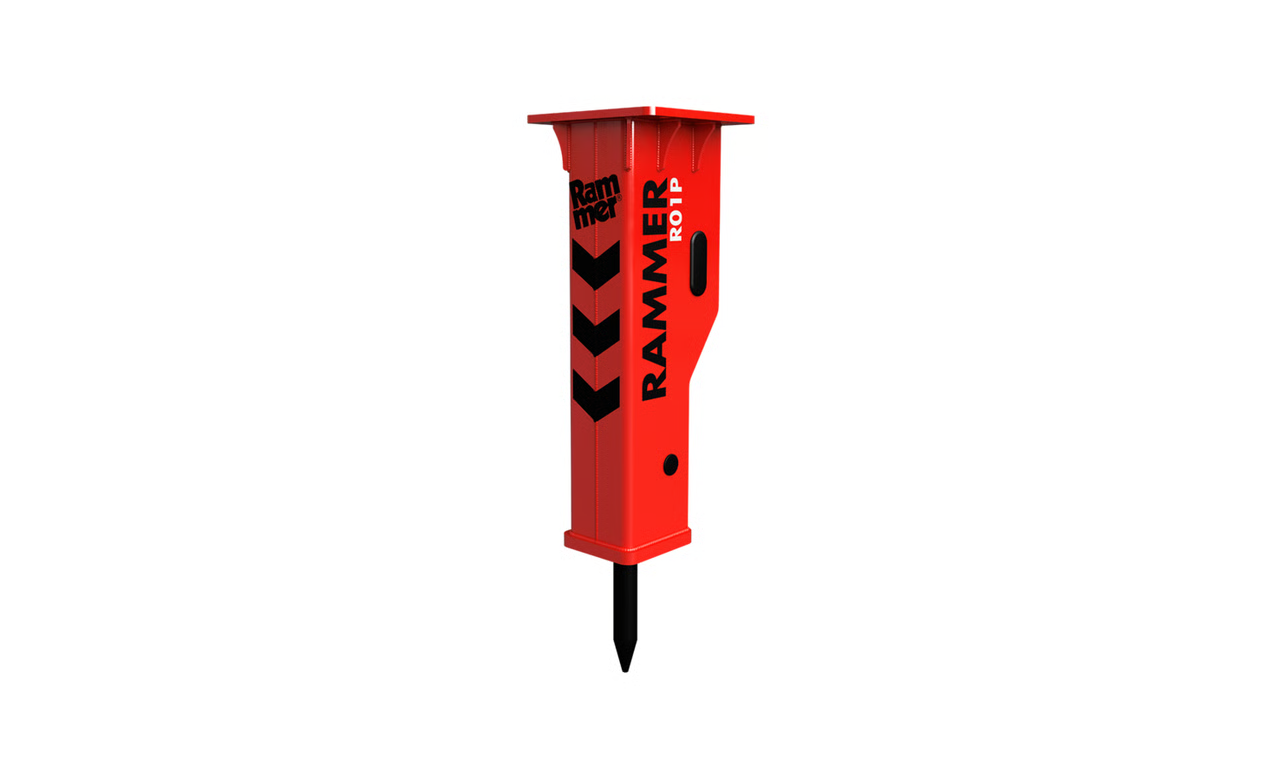

The Rammer R01P hydraulic hammer is a compact and efficient breaker designed for mini excavators, skid steers, and robotic carriers in the 1–2 ton class. It is an ideal solution for trenching, secondary demolition, recycling, landscaping, and rental applications.
Built for durability and consistent performance, the Rammer R01P delivers high impact efficiency with low operating costs. Its compact design and high blow frequency make it especially effective in confined job sites and urban environments.
Applications
Trenching
Efficient for utility trenches, pipeline work, and narrow excavation projects.
Secondary Demolition
Suitable for breaking concrete, masonry, and smaller structures.
Recycling
Ideal for recycling yards and processing construction waste materials.
Landscaping
Perfect for landscaping projects, parks, and infrastructure preparation.
Rental Fleets
Durable construction and easy operation make it a strong choice for rental machines.
Technical Specifications
| Specification | Value |
|---|---|
| Model | Rammer R01P |
| Operating Weight | 75 kg |
| Minimum Working Weight, Flange Mounted | 95 kg |
| Tool Diameter | 40 mm |
| Impact Rate | 700 – 1,400 bpm |
| Operating Pressure | 80 – 120 bar |
| Oil Flow Range | 15 – 25 l/min |
| Pressure Relief Setting | 150 bar |
| Maximum Pressure Relief | 170 bar |
| Maximum Back Pressure | 20 bar |
| Input Power | 5 kW |
| Pressure Line Connection | BSPP Internal 1/2″ |
| Return Line Connection | BSPP Internal 1/2″ |
| Minimum Hose Inner Diameter | 12 mm |
| Optimum Oil Temperature | 40 – 60°C |
| Allowed Oil Temperature Range | -20°C to 80°C |
| Optimum Oil Viscosity | 30 – 60 |
| Allowed Viscosity Range | 20 – 1,000 |
| Suitable Carrier Weight | 1 – 2 t |
| Measured Noise Level | 110 dB |
| Guaranteed Noise Level | 114 dB |
Compatible Machines
Caterpillar Mini Excavators
Kubota Mini Excavators
Bobcat Mini Excavators
Takeuchi Mini Excavators
JCB Mini Excavators
Yanmar Mini Excavators
Why Choose Rammer
Rammer is globally recognized for manufacturing premium hydraulic hammers with exceptional durability, efficiency, and long service life. The Small Range series is specifically engineered for compact carriers and professional daily use.
Contact MAQ ATTACH
For pricing, availability, and professional consultation regarding the Rammer R01P hydraulic hammer, please contact our team.
