Powerful Hydraulic Breaker for Demolition, Trenching, and Construction Applications

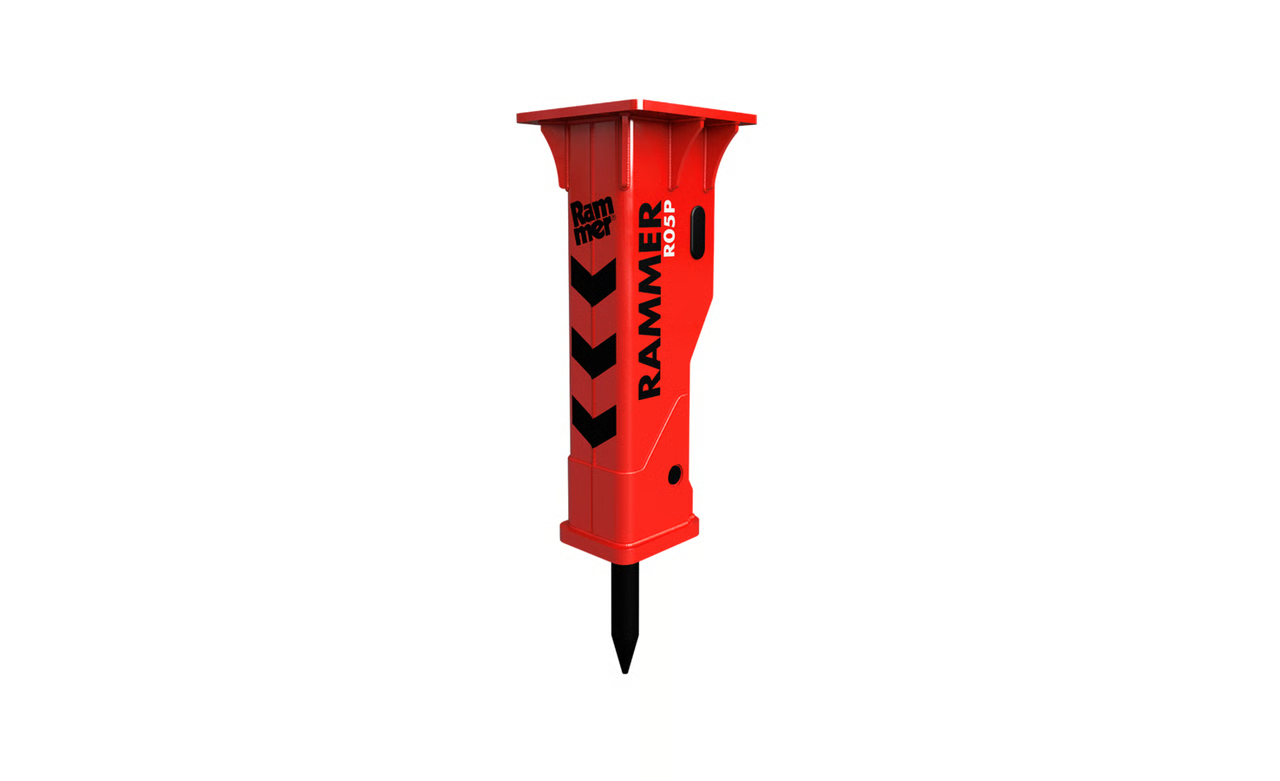

The Rammer R05P hydraulic hammer is engineered for compact and mid-sized carriers operating in demanding demolition and construction environments. Designed for excavators, skid steers, and compact carriers in the 4–8 ton range, the R05P delivers powerful impact performance, optimized hydraulic efficiency, and long-term reliability.
Its durable Rammer construction and high breaking force make it an excellent solution for trenching, primary and secondary demolition, landscaping, and rental applications.
Applications
Trenching
Ideal for utility trenching, cable installation, and infrastructure projects.
Primary Demolition
Efficient for concrete breaking, renovation work, and light structural demolition.
Secondary Demolition
Suitable for reinforced concrete, asphalt, and masonry breaking applications.
Landscaping
Perfect for landscaping, surface preparation, and ground improvement projects.
Rental Fleets
Reliable and easy-to-operate hydraulic breaker for rental equipment fleets.
Technical Specifications
| Specification | Value |
|---|---|
| Model | Rammer R05P |
| Operating Weight | 266 kg |
| Minimum Working Weight, Flange Mounted | 325 kg |
| Tool Diameter | 68 mm |
| Impact Rate | 400 – 1,050 bpm |
| Operating Pressure | 110 – 155 bar |
| Oil Flow Range | 35 – 70 l/min |
| Pressure Relief Setting | 200 bar |
| Maximum Pressure Relief | 220 bar |
| Maximum Back Pressure | 15 bar |
| Input Power | 18 kW |
| Pressure Line Connection | BSPP Internal 3/4″ |
| Return Line Connection | BSPP Internal 3/4″ |
| Minimum Hose Inner Diameter | 15 mm |
| Return Hose Minimum Inner Diameter | 15 mm |
| Optimum Oil Temperature | 40 – 60°C |
| Allowed Oil Temperature Range | -20°C to 80°C |
| Optimum Oil Viscosity | 30 – 60 |
| Allowed Viscosity Range | 20 – 1,000 |
| Suitable Skid Steer / Robot Weight | 3 – 5 t |
| Suitable Carrier Weight | 4 – 8 t |
| Measured Noise Level | 118 dB |
| Guaranteed Noise Level | 122 dB |
Compatible Machines
Caterpillar Excavators
Kubota Excavators
Bobcat Compact Excavators
Takeuchi Excavators
JCB Excavators
Yanmar Compact Excavators
Why Choose Rammer
Rammer hydraulic hammers are trusted worldwide for their durability, efficiency, and high-performance breaking technology. The Small Range series is designed for professional operators who require reliability, productivity, and low operating costs in demanding job site conditions.
Contact MAQ ATTACH
For pricing, availability, and professional consultation regarding the Rammer R05P hydraulic hammer, please contact our team.
