Heavy-Duty Hydraulic Breaker for Demolition and Construction Applications

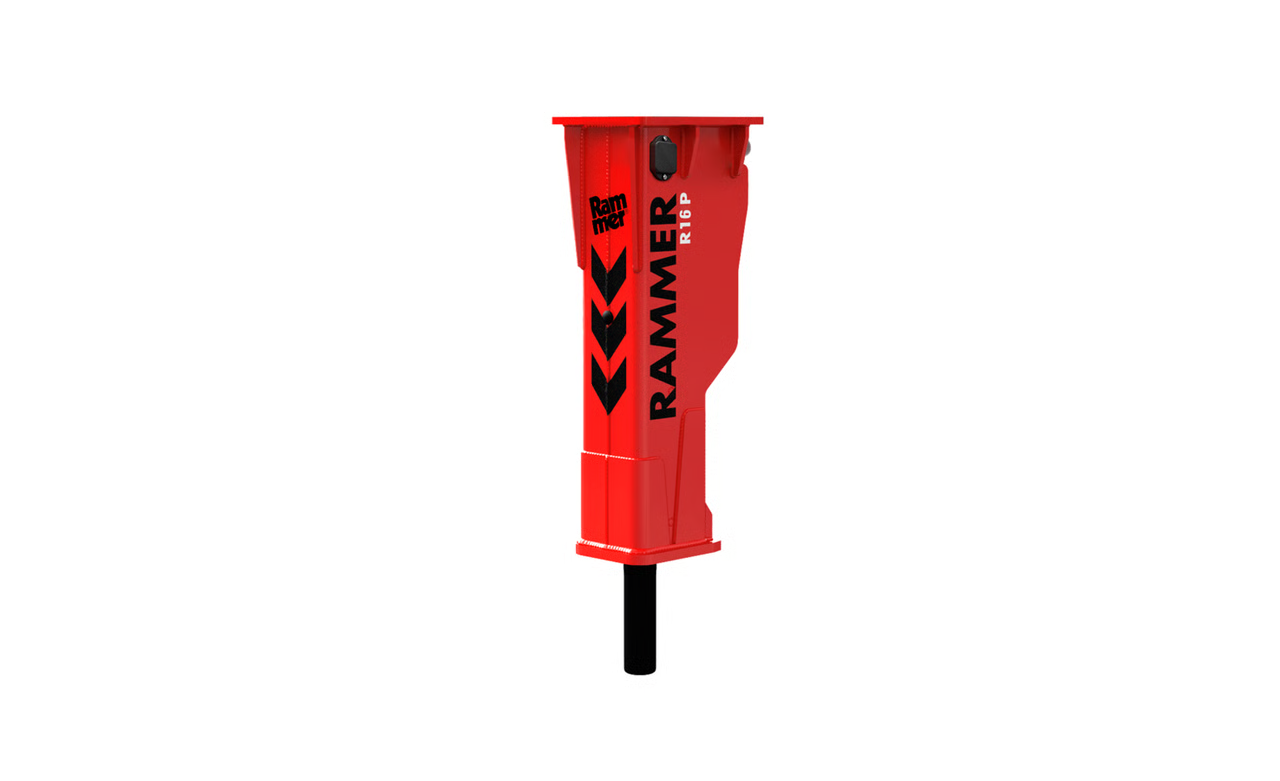

The Rammer R16P hydraulic hammer is designed for demanding demolition, trenching, and heavy construction applications. Engineered for excavators in the 13–21 ton range, the R16P delivers powerful impact energy, reliable hydraulic performance, and high productivity in challenging job site conditions.
As part of the Rammer Medium Range Performance series, the R16P combines advanced hydraulic technology, durable construction, and low operating costs, making it an ideal solution for professional demolition contractors and rental fleets.
Applications
Primary Demolition
Efficient for structural demolition, concrete breaking, and heavy renovation projects.
Trenching
Ideal for utility trenching, pipeline installation, and infrastructure construction.
Secondary Demolition
Suitable for reinforced concrete, asphalt, and masonry breaking applications.
Secondary Breaking
Excellent for reducing oversized rock and concrete materials.
Landscaping
Perfect for ground preparation, surface improvement, and landscaping projects.
Rental Fleets
Reliable and operator-friendly hydraulic breaker for demanding rental operations.
Technical Specifications
| Specification | Value |
|---|---|
| Model | Rammer R16P |
| Operating Weight | 920 kg |
| Minimum Working Weight, Flange Mounted | 1,120 kg |
| Tool Diameter | 110 mm |
| Impact Rate | 280 – 860 bpm |
| Operating Pressure | 160 – 180 bar |
| Oil Flow Range | 90 – 120 l/min |
| Pressure Relief Setting | 210 bar |
| Maximum Pressure Relief | 230 bar |
| Back Head Pressure | 10 – 15 bar |
| Maximum Back Pressure | 10 bar |
| Input Power | 36 kW |
| Pressure Line Connection | ORFS ISO8434-3 (1 7/16 – 12UN) |
| Return Line Connection | ORFS ISO8434-3 (1 7/16 – 12UN) |
| Minimum Hose Inner Diameter | 19 mm |
| Return Hose Minimum Inner Diameter | 19 mm |
| Grease Connection | BSP Internal 3/8″ |
| Optimum Oil Temperature | 40 – 60°C |
| Allowed Oil Temperature Range | -20°C to 80°C |
| Optimum Oil Viscosity | 30 – 60 |
| Allowed Viscosity Range | 20 – 1,000 |
| Suitable Carrier Weight | 13 – 21 t |
| Measured Noise Level | 117 dB |
| Guaranteed Noise Level | 121 dB |
Compatible Machines
Caterpillar Excavators
Komatsu Excavators
Hitachi Excavators
Volvo Construction Equipment Excavators
Doosan Excavators
Hyundai Construction Equipment Excavators
Why Choose Rammer
Rammer hydraulic hammers are recognized worldwide for their durability, efficiency, and high-performance breaking technology. The Medium Range Performance series is engineered for professional demolition and construction applications where maximum reliability and productivity are essential.
Contact MAQ ATTACH
For pricing, availability, and professional consultation regarding the Rammer R16P hydraulic hammer, please contact our team.
